Spring -- Spring Data JPA

Posted on | In , | Views:
| Symbols count in article: 13k | Reading time ≈ 24 mins.

O/R Mapping

RDBMS : Relational database management system

Object RDBMS
粒度 类 表
继承 有 无
唯一性 a==b
a.equals(b)		 主键
关联 引用 外键
数据访问 逐级访问 SQL数量要少

Hibernate

简介

  1. Hibernate是一款开源的O/R Mapping框架
  2. 将开发者从95%的常见数据持久化（简单的CRUD）工作中解放出来
  3. 屏蔽底层数据库（MySQL/Oracle/H2）的差异

发展历程

  1. 2001年，Hibernate发布第一个版本
  2. 2003年，Hibernate开发团队加入JBoss
  3. 2006年，Hibernate 3.2成为JPA实现

JPA

  1. JPA : Java Persistence API
  2. JPA为O/R Mapping提供了一种基于POJO的持久化模型
    • 简化数据持久化代码的开发工作
    • 为Java社区屏蔽不同持久化API（Hibernate/JDO/EJB）的差异
  3. 在2006年JPA 1.0作为JSR 220的一部分正式发布（JSR，Java Specification Request）

Spring Data

  1. Spring将与数据操作相关的内容剥离出Spring Framework，统一到Spring Data
  2. 在保留底层存储特性的同时，提供相对一致的，基于Spring的编程模型
  3. 主要模块：Spring Data Commons、Spring Data JDBC、Spring Data JPA、Spring Data Redis
    • Spring Data JDBC – JdbcTemplate
    • Spring Data Redis – RedisTemplate
1
2
3
4
5
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-data-jpa</artifactId>
    <version>2.1.7.RELEASE</version>
</dependency>

JPA注解

  1. 实体
    • @Entity
    • @MappedSuperclass
    • @Table
  2. 主键
    • @Id
      • @GeneratedValue(strategy, generator)
      • @SequenceGenerator(name, sequenceName)
  3. 映射
    • @Column(name, nullable, length, insertable, updatable)
    • @JoinTable(name)、@JoinColumn(name)
  4. 关系
    • @OneToOne、@OneToMany、@ManyToOne、@ManyToMany
    • @OrderBy
1
2
3
4
5
6
7
8
9
10
11
12
@Data
// 没有@Table注解，表名即为Product
@Entity(name = "Product")
public class Product {
    @Id
    @GeneratedValue(strategy = GenerationType.SEQUENCE, generator = "sequence-generator")
    @SequenceGenerator(name = "sequence-generator", sequenceName = "product_sequence")
    private Long id;

    @Column(name = "product_name")
    private String name;
}

SpringBucks

UML

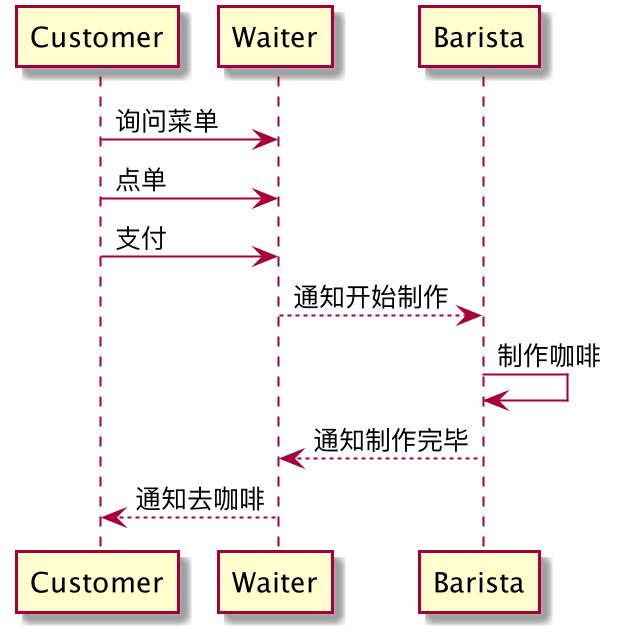

时序图

部署图

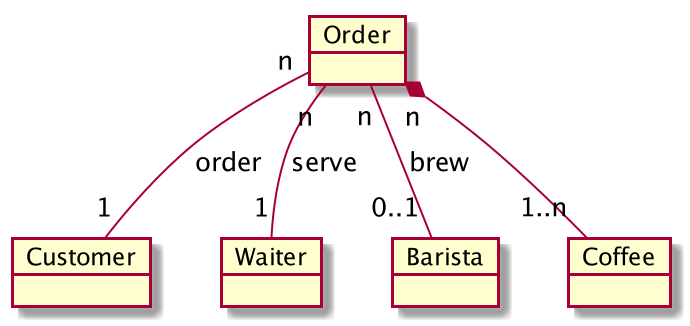

对象图

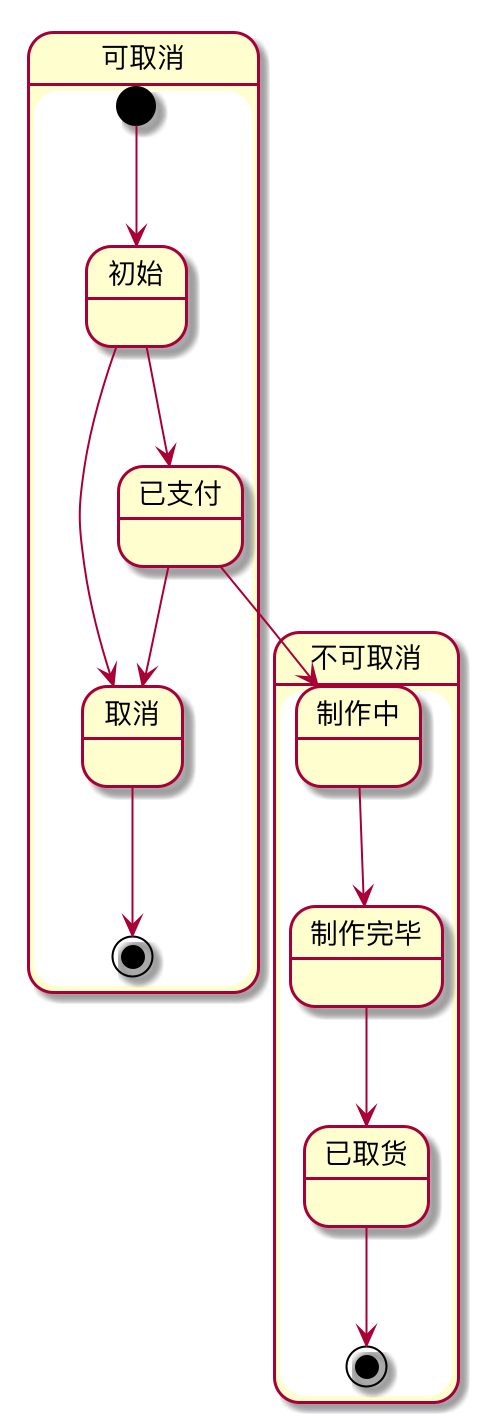

状态图

依赖

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-data-jpa</artifactId>
</dependency>
<dependency>
    <groupId>com.h2database</groupId>
    <artifactId>h2</artifactId>
    <scope>runtime</scope>
</dependency>
<dependency>
    <groupId>org.projectlombok</groupId>
    <artifactId>lombok</artifactId>
    <optional>true</optional>
</dependency>
<dependency>
    <groupId>org.joda</groupId>
    <artifactId>joda-money</artifactId>
    <version>1.0.1</version>
</dependency>
<dependency>
    <groupId>org.jadira.usertype</groupId>
    <artifactId>usertype.core</artifactId>
    <version>6.0.1.GA</version>
</dependency>

Entity

BaseEntity

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
@MappedSuperclass
@Data
@NoArgsConstructor
@AllArgsConstructor
public class BaseEntity implements Serializable {
    @Id
    // 如果strategy采用GenerationType.IDENTITY，使用数据库的自增主键，不会生成sequence表
    @GeneratedValue
    private Long id;

    @Column(updatable = false)
    @CreationTimestamp
    private Date createTime;

    @UpdateTimestamp
    private Date updateTime;
}

Coffee

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
@Entity
@Table(name = "T_MENU")
@Builder
@Data
@ToString(callSuper = true)
@NoArgsConstructor
@AllArgsConstructor
@EqualsAndHashCode(callSuper = true)
public class Coffee extends BaseEntity {
    private String name;

    @Column
    @Type(type = "org.jadira.usertype.moneyandcurrency.joda.PersistentMoneyMinorAmount",
            parameters = {@org.hibernate.annotations.Parameter(name = "currencyCode", value = "CNY")})
    private Money price;
}

Order

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
@Entity
@Table(name = "T_ORDER")
@Builder
@Data
@ToString(callSuper = true)
@NoArgsConstructor
@AllArgsConstructor
@EqualsAndHashCode(callSuper = true)
public class Order extends BaseEntity {
    private String customer;

    @ManyToMany
    @JoinTable(name = "T_ORDER_COFFEE") // 映射表
    private List<Coffee> items;

    @Enumerated // 映射成integer
    @Column(nullable = false)
    private OrderState state;
}

public enum OrderState {
    INIT, PAID, BREWING, BREWED, TAKEN, CANCELLED
}

application.properties

1
2
3
spring.jpa.hibernate.ddl-auto=create-drop
spring.jpa.properties.hibernate.show_sql=true
spring.jpa.properties.hibernate.format_sql=true

相关日志

1
2
3
4
5
6
7
8
9
10
11
12
Hibernate:

    drop table t_menu if exists
Hibernate:

    drop table t_order if exists
Hibernate:

    drop table t_order_coffee if exists
Hibernate:

    drop sequence if exists hibernate_sequence
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
Hibernate: create sequence hibernate_sequence start with 1 increment by 1
Hibernate:

    create table t_menu (
       id bigint not null,
        create_time timestamp,
        update_time timestamp,
        name varchar(255),
        price bigint,
        primary key (id)
    )
Hibernate:

    create table t_order (
       id bigint not null,
        create_time timestamp,
        update_time timestamp,
        customer varchar(255),
        state integer not null,
        primary key (id)
    )
Hibernate:

    create table t_order_coffee (
       order_id bigint not null,
        items_id bigint not null
    )
Hibernate:

    alter table t_order_coffee
       add constraint FKj2swxd3y69u2tfvalju7sr07q
       foreign key (items_id)
       references t_menu
Hibernate:

    alter table t_order_coffee
       add constraint FKjnvwi9aq5s71k7dru924mleq7
       foreign key (order_id)
       references t_order
1
2
3
4
5
6
7
8
9
10
11
12
Hibernate:

   drop table t_menu if exists
Hibernate:

   drop table t_order if exists
Hibernate:

   drop table t_order_coffee if exists
Hibernate:

   drop sequence if exists hibernate_sequence

Repository

1
2
3
4
5
@EnableJpaRepositories

JpaRepository<T, ID> extends PagingAndSortingRepository<T, ID>
PagingAndSortingRepository<T, ID> extends CrudRepository<T, ID>
CrudRepository<T, ID> extends Repository<T, ID>

定义查询

  1. find..by.. / find..by.. / query..by.. / get..by..
  2. count..by..
  3. ..OrderBy..[Asc/Desc]
  4. And / Or / IgnoreCase
  5. Top / First / Distinct

分页查询

  1. PagingAndSortingRepository<T, ID>
  2. Pageable / Sort
  3. Slice<T> / Page<T>

保存Entity

CoffeeRepository
1
2
public interface CoffeeRepository extends CrudRepository<Coffee, Long> {
}
OrderRepository
1
2
public interface OrderRepository extends CrudRepository<Order, Long> {
}
SpringDataJpaApplication
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
@Slf4j
@EnableJpaRepositories
@SpringBootApplication
public class SpringDataJpaApplication implements ApplicationRunner {

    @Autowired
    private CoffeeRepository coffeeRepository;
    @Autowired
    private OrderRepository orderRepository;

    public static void main(String[] args) {
        SpringApplication.run(SpringDataJpaApplication.class, args);
    }

    @Override
    public void run(ApplicationArguments args) throws Exception {
        initOrders();
    }

    private void initOrders() {
        Coffee espresso = Coffee.builder().name("espresso")
                .price(Money.of(CurrencyUnit.of("CNY"), 20.0)).build();
        coffeeRepository.save(espresso);
        log.info("Coffee: {}", espresso);

        Coffee latte = Coffee.builder().name("latte")
                .price(Money.of(CurrencyUnit.of("CNY"), 30.0)).build();
        coffeeRepository.save(latte);
        log.info("Coffee: {}", latte);

        Order order = Order.builder().customer("zhongmingmao")
                .items(Arrays.asList(espresso))
                .state(OrderState.INIT).build();
        orderRepository.save(order);
        log.info("Order: {}", order);

        order = Order.builder().customer("zhongmingmao")
                .items(Arrays.asList(espresso, latte))
                .state(OrderState.INIT).build();
        orderRepository.save(order);
        log.info("Order: {}", order);
    }
}
相关日志
1
2
3
4
5
6
7
8
9
10
11
Hibernate:
    call next value for hibernate_sequence
Hibernate:
    insert
    into
        t_menu
        (create_time, update_time, name, price, id)
    values
        (?, ?, ?, ?, ?)

Coffee: Coffee(super=BaseEntity(id=1, createTime=Sat Aug 31 14:27:26 CST 2019, updateTime=Sat Aug 31 14:27:26 CST 2019), name=espresso, price=CNY 20.00)
1
2
3
4
5
6
7
8
9
10
11
Hibernate:
    call next value for hibernate_sequence
Hibernate:
    insert
    into
        t_menu
        (create_time, update_time, name, price, id)
    values
        (?, ?, ?, ?, ?)

Coffee: Coffee(super=BaseEntity(id=2, createTime=Sat Aug 31 14:27:26 CST 2019, updateTime=Sat Aug 31 14:27:26 CST 2019), name=latte, price=CNY 30.00)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Hibernate:
    call next value for hibernate_sequence
Hibernate:
    insert
    into
        t_order
        (create_time, update_time, customer, state, id)
    values
        (?, ?, ?, ?, ?)
Hibernate:
    insert
    into
        t_order_coffee
        (order_id, items_id)
    values
        (?, ?)

Order: Order(super=BaseEntity(id=3, createTime=Sat Aug 31 14:27:26 CST 2019, updateTime=Sat Aug 31 14:27:26 CST 2019), customer=zhongmingmao, items=[Coffee(super=BaseEntity(id=1, createTime=Sat Aug 31 14:27:26 CST 2019, updateTime=Sat Aug 31 14:27:26 CST 2019), name=espresso, price=CNY 20.00)], state=INIT)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Hibernate:
    call next value for hibernate_sequence
Hibernate:
    insert
    into
        t_order
        (create_time, update_time, customer, state, id)
    values
        (?, ?, ?, ?, ?)
Hibernate:
    insert
    into
        t_order_coffee
        (order_id, items_id)
    values
        (?, ?)
Hibernate:
    insert
    into
        t_order_coffee
        (order_id, items_id)
    values
        (?, ?)

Order: Order(super=BaseEntity(id=4, createTime=Sat Aug 31 14:27:26 CST 2019, updateTime=Sat Aug 31 14:27:26 CST 2019), customer=zhongmingmao, items=[Coffee(super=BaseEntity(id=1, createTime=Sat Aug 31 14:27:26 CST 2019, updateTime=Sat Aug 31 14:27:26 CST 2019), name=espresso, price=CNY 20.00), Coffee(super=BaseEntity(id=2, createTime=Sat Aug 31 14:27:26 CST 2019, updateTime=Sat Aug 31 14:27:26 CST 2019), name=latte, price=CNY 30.00)], state=INIT)

查询Entity

BaseRepository
1
2
3
4
@NoRepositoryBean // 告知Spring无需为BaseRepository创建Bean
public interface BaseRepository<T, ID> extends PagingAndSortingRepository<T, ID> {
    List<T> findTop3ByOrderByUpdateTimeDescIdAsc();
}
CoffeeRepository
1
2
public interface CoffeeRepository extends BaseRepository<Coffee, Long> {
}
OrderRepository
1
2
3
4
5
public interface OrderRepository extends BaseRepository<Order, Long> {
    List<Order> findByCustomerOrderById(String customer);

    List<Order> findByItems_Name(String name);
}
SpringDataJpaApplication
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
private void findOrders() {
    coffeeRepository.findAll(Sort.by(Sort.Direction.DESC, "id"))
            .forEach(coffee -> log.info("Loading {}", coffee));

    List<Order> orders = orderRepository.findTop3ByOrderByUpdateTimeDescIdAsc();
    log.info("findTop3ByOrderByUpdateTimeDescIdAsc: {}", getJoinedOrderId(orders));

    orders = orderRepository.findByCustomerOrderById("zhongmingmao");
    log.info("findByCustomerOrderById: {}", getJoinedOrderId(orders));

    // 不开启事务会因为没有Session而报LazyInitializationException
    // run方法加上@Transactional注解
    orders.forEach(order -> {
        log.info("Order: {}", order.getId());
        order.getItems().forEach(coffee -> log.info(" Item {}", coffee));
    });

    orders = orderRepository.findByItems_Name("latte");
    log.info("findByItems_Name: {}", getJoinedOrderId(orders));
}

private String getJoinedOrderId(List<Order> orders) {
    return orders.stream().map(order -> order.getId().toString()).collect(Collectors.joining(","));
}
相关日志
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Hibernate:
    select
        coffee0_.id as id1_0_,
        coffee0_.create_time as create_t2_0_,
        coffee0_.update_time as update_t3_0_,
        coffee0_.name as name4_0_,
        coffee0_.price as price5_0_
    from
        t_menu coffee0_
    order by
        coffee0_.id desc

Loading Coffee(super=BaseEntity(id=2, createTime=Sat Aug 31 15:03:49 CST 2019, updateTime=Sat Aug 31 15:03:49 CST 2019), name=latte, price=CNY 30.00)
Loading Coffee(super=BaseEntity(id=1, createTime=Sat Aug 31 15:03:49 CST 2019, updateTime=Sat Aug 31 15:03:49 CST 2019), name=espresso, price=CNY 20.00)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Hibernate:
    select
        order0_.id as id1_1_,
        order0_.create_time as create_t2_1_,
        order0_.update_time as update_t3_1_,
        order0_.customer as customer4_1_,
        order0_.state as state5_1_
    from
        t_order order0_
    order by
        order0_.update_time desc,
        order0_.id asc limit ?

findTop3ByOrderByUpdateTimeDescIdAsc: 4,3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Hibernate:
    select
        order0_.id as id1_1_,
        order0_.create_time as create_t2_1_,
        order0_.update_time as update_t3_1_,
        order0_.customer as customer4_1_,
        order0_.state as state5_1_
    from
        t_order order0_
    where
        order0_.customer=?
    order by
        order0_.id asc

findByCustomerOrderById: 3,4
Order: 3
 Item Coffee(super=BaseEntity(id=1, createTime=Sat Aug 31 15:03:49 CST 2019, updateTime=Sat Aug 31 15:03:49 CST 2019), name=espresso, price=CNY 20.00)
Order: 4
 Item Coffee(super=BaseEntity(id=1, createTime=Sat Aug 31 15:03:49 CST 2019, updateTime=Sat Aug 31 15:03:49 CST 2019), name=espresso, price=CNY 20.00)
 Item Coffee(super=BaseEntity(id=2, createTime=Sat Aug 31 15:03:49 CST 2019, updateTime=Sat Aug 31 15:03:49 CST 2019), name=latte, price=CNY 30.00)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Hibernate:
    select
        order0_.id as id1_1_,
        order0_.create_time as create_t2_1_,
        order0_.update_time as update_t3_1_,
        order0_.customer as customer4_1_,
        order0_.state as state5_1_
    from
        t_order order0_
    left outer join
        t_order_coffee items1_
            on order0_.id=items1_.order_id
    left outer join
        t_menu coffee2_
            on items1_.items_id=coffee2_.id
    where
        coffee2_.name=?

findByItems_Name: 4
Related Posts
0%
