Spring -- 单数据源

Spring

需要配置的Bean

  1. 数据源相关
    • DataSource(根据选择的连接池决定)
  2. 事务相关(可选)
    • PlatformTransactionManager(常用的是DataSourceTransactionManager
    • TransactionTemplate
  3. 操作相关(可选)
    • JdbcTemplate

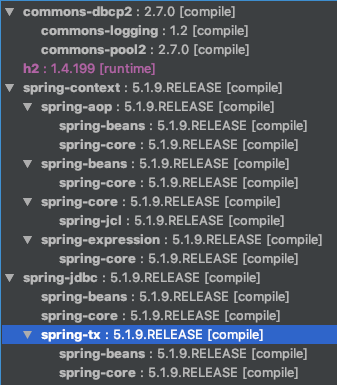

依赖

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
<dependency>
<groupId>org.apache.commons</groupId>
<artifactId>commons-dbcp2</artifactId>
<version>2.7.0</version>
</dependency>
<dependency>
<groupId>com.h2database</groupId>
<artifactId>h2</artifactId>
<version>1.4.199</version>
<scope>runtime</scope>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context</artifactId>
<version>5.1.9.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-jdbc</artifactId>
<version>5.1.9.RELEASE</version>
</dependency>

applicationContext.xml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:c="http://www.springframework.org/schema/c"
xmlns:p="http://www.springframework.org/schema/p" xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-4.1.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context-4.1.xsd">

<context:component-scan base-package="me.zhongmingmao"/>

<!-- 代码中配置 -->
<!--
<bean id="dataSource" class="org.apache.commons.dbcp2.BasicDataSource" destroy-method="close">
<property name="driverClassName" value="org.h2.Driver"/>
<property name="url" value="jdbc:h2:mem:testdb"/>
<property name="username" value="SA"/>
<property name="password" value=""/>
</bean>
-->

</beans>

Java代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
@Configuration
@EnableTransactionManagement
public class DataSourceDemo {

@Autowired
private DataSource dataSource;

public static void main(String[] args) throws SQLException {
ApplicationContext applicationContext =
new ClassPathXmlApplicationContext("applicationContext*.xml");
showBeans(applicationContext);
dataSourceDemo(applicationContext);
}

@Bean(destroyMethod = "close")
public DataSource dataSource() throws Exception {
Properties properties = new Properties();
properties.setProperty("driverClassName", "org.h2.Driver");
properties.setProperty("url", "jdbc:h2:mem:testdb");
properties.setProperty("username", "SA");
// dbcp2
return BasicDataSourceFactory.createDataSource(properties);
}

@Bean
public PlatformTransactionManager transactionManager() throws Exception {
return new DataSourceTransactionManager(dataSource());
}

private void showDataSource() throws SQLException {
System.out.println("dataSource=" + dataSource);
Connection connection = dataSource.getConnection();
System.out.println("connection=" + connection);
connection.close();
}

private static void showBeans(ApplicationContext applicationContext) {
System.out.println("beans=" + Arrays.toString(applicationContext.getBeanDefinitionNames()));
}

private static void dataSourceDemo(ApplicationContext applicationContext) throws SQLException {
DataSourceDemo dataSourceDemo = applicationContext.getBean("dataSourceDemo", DataSourceDemo.class);
dataSourceDemo.showDataSource();
}
}
1
2
dataSource=org.apache.commons.dbcp2.BasicDataSource@2a798d51
connection=1704237553, URL=jdbc:h2:mem:testdb, UserName=SA, H2 JDBC Driver

Spring Boot

自动配置

需要配置的Bean 自动配置
DataSource DataSourceAutoConfiguration
DataSourceTransactionManager DataSourceTransactionManagerAutoConfiguration
JdbcTemplate JdbcTemplateAutoConfiguration

依赖

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-actuator</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-jdbc</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>com.h2database</groupId>
<artifactId>h2</artifactId>
<scope>runtime</scope>
</dependency>
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<optional>true</optional>
</dependency>

Maven Scope

Java代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
@Slf4j
@SpringBootApplication
public class SingleDataSourceApplication implements CommandLineRunner {

// 依据依赖关系,自动配置
@Autowired
private DataSource dataSource;

public static void main(String[] args) {
SpringApplication.run(SingleDataSourceApplication.class, args);
}

@Override
public void run(String... args) throws Exception {
showConnection();
}

private void showConnection() throws SQLException {
log.info("dataSource={}", dataSource);
Connection connection = dataSource.getConnection();
log.info("connection={}", connection);
connection.close();
}
}
1
2
dataSource=HikariDataSource (null)
connection=HikariProxyConnection@1903406683 wrapping conn0: url=jdbc:h2:mem:testdb user=SA

查看Bean

路径:/actuator/beans

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
"dataSource": {
"aliases": [],
"scope": "singleton",
"type": "com.zaxxer.hikari.HikariDataSource",
"resource": "class path resource [org/springframework/boot/autoconfigure/jdbc/DataSourceConfiguration$Hikari.class]",
"dependencies": ["spring.datasource-org.springframework.boot.autoconfigure.jdbc.DataSourceProperties"]
}

"transactionManager": {
"aliases": [],
"scope": "singleton",
"type": "org.springframework.jdbc.datasource.DataSourceTransactionManager",
"resource": "class path resource [org/springframework/boot/autoconfigure/jdbc/DataSourceTransactionManagerAutoConfiguration$DataSourceTransactionManagerConfiguration.class]",
"dependencies": ["spring.datasource-org.springframework.boot.autoconfigure.jdbc.DataSourceProperties"]
}

"jdbcTemplate": {
"aliases": [],
"scope": "singleton",
"type": "org.springframework.jdbc.core.JdbcTemplate",
"resource": "class path resource [org/springframework/boot/autoconfigure/jdbc/JdbcTemplateAutoConfiguration$JdbcTemplateConfiguration.class]",
"dependencies": []
}

H2

依赖

1
2
3
4
5
6
7
8
9
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-jdbc</artifactId>
</dependency>
<dependency>
<groupId>com.h2database</groupId>
<artifactId>h2</artifactId>
<scope>runtime</scope>
</dependency>

schema.sql

1
2
3
4
5
6
CREATE TABLE PERSON(
ID BIGINT PRIMARY KEY AUTO_INCREMENT,
FIRST_NAME VARCHAR(255),
LAST_NAME VARCHAR(255),
ADDRESS VARCHAR(255)
);

data.sql

1
INSERT INTO PERSON (first_Name, Last_Name, Address) VALUES ('Tom', 'Syke', 'Green Valley');

Person

1
2
3
4
5
6
7
8
9
@Data
@AllArgsConstructor
@NoArgsConstructor
public class Person {
private Long id;
private String firstName;
private String lastName;
private String address;
}

PersonDao

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
@Slf4j
@Repository
public class PersonDao {

@Autowired
private DataSource dataSource;
@Autowired
private JdbcTemplate jdbcTemplate;

public void printDataSource() throws SQLException {
log.info("dataSource={}", dataSource);
Connection connection = dataSource.getConnection();
log.info("connection={}", connection);
connection.close();
}

public void save(Person person) {
String sql = "INSERT INTO Person (FIRST_NAME, LAST_NAME, ADDRESS) VALUES (?, ?, ?)";
jdbcTemplate.update(sql, person.getFirstName(), person.getLastName(), person.getAddress());
}

public List<Person> loadAll() {
return jdbcTemplate.query("SELECT * FROM PERSON", (resultSet, i) -> toPerson(resultSet));
}

private Person toPerson(ResultSet resultSet) throws SQLException {
Person person = new Person();
person.setId(resultSet.getLong("ID"));
person.setFirstName(resultSet.getString("FIRST_NAME"));
person.setLastName(resultSet.getString("LAST_NAME"));
person.setAddress(resultSet.getString("ADDRESS"));
return person;
}
}

Client

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
@Component
public class Client {

@Autowired
private PersonDao personDao;

public void run() throws SQLException {
personDao.printDataSource();

personDao.save(new Person(null, "Dana", "Whitley", "464 Yellow Drive"));
personDao.save(new Person(null, "Robin", "Cash", "64 Logic Park"));

List<Person> persons = personDao.loadAll();
persons.forEach(System.out::println);
}
}

SingleDatasourceH2Application

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
@SpringBootApplication
public class SingleDatasourceH2Application implements CommandLineRunner {

@Autowired
private Client client;

public static void main(String[] args) {
SpringApplication application = new SpringApplication(SingleDatasourceH2Application.class);
application.setBannerMode(Banner.Mode.OFF);
application.run(args);
}

@Override
public void run(String... args) throws SQLException {
client.run();
}
}
1
2
3
4
5
6
dataSource=HikariDataSource (HikariPool-1)
connection=HikariProxyConnection@848961421 wrapping conn0: url=jdbc:h2:mem:testdb user=SA

Person(id=1, firstName=Tom, lastName=Syke, address=Green Valley)
Person(id=2, firstName=Dana, lastName=Whitley, address=464 Yellow Drive)
Person(id=3, firstName=Robin, lastName=Cash, address=64 Logic Park)
