Kafka -- Docker + Schema Registry

Avro

  1. Avro的数据文件里包含了整个Schema
  2. 如果每条Kafka记录都嵌入了Schema,会让记录的大小成倍地增加
  3. 在读取记录时,仍然需要读到整个Schema,所以需要先找到Schema
  4. 可以采用通用的结构模式并使用Schema注册表的方案
    • 开源的Schema注册表实现:Confluent Schema Registry

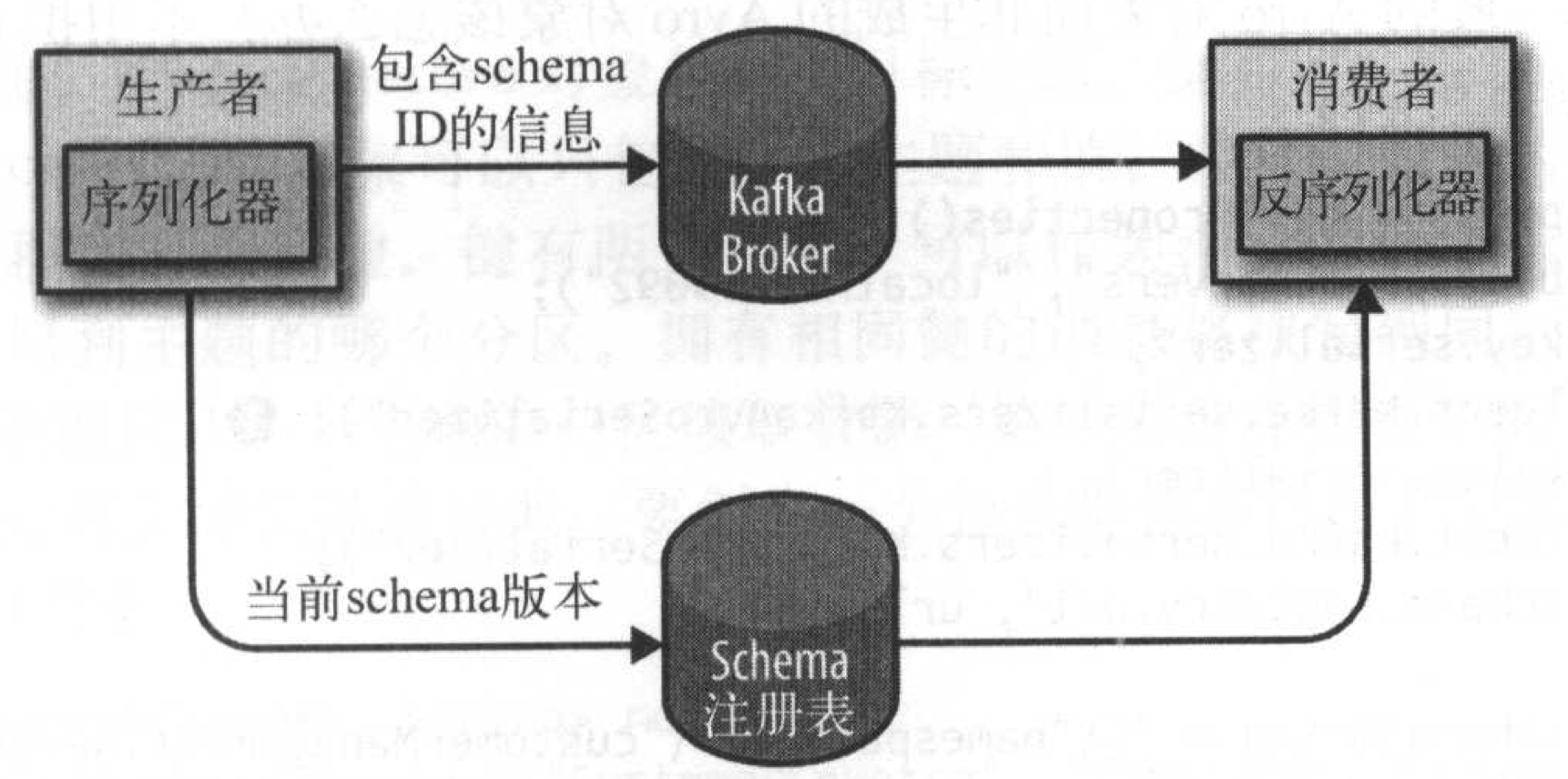

Confluent Schema Registry

  1. 把所有写入数据需要用到的Schema保存在注册表里,然后在记录里引用Schema ID
  2. 负责读数据的应用程序使用Schema ID从注册表拉取Schema反序列化记录
  3. 序列化器和反序列化器分别负责处理Schema的注册拉取

Confluent Schema Registry

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
# Start Zookeeper and expose port 2181 for use by the host machine
$ docker run -d --name zookeeper -p 2181:2181 confluent/zookeeper

# Start Kafka and expose port 9092 for use by the host machine
$ docker run -d --name kafka -p 9092:9092 --link zookeeper:zookeeper confluent/kafka

# Start Schema Registry and expose port 8081 for use by the host machine
$ docker run -d --name schema-registry -p 8081:8081 --link zookeeper:zookeeper \
--link kafka:kafka confluent/schema-registry

# Start REST Proxy and expose port 8082 for use by the host machine
$ docker run -d --name rest-proxy -p 8082:8082 --link zookeeper:zookeeper \
--link kafka:kafka --link schema-registry:schema-registry confluent/rest-proxy

$ docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
38e5a908c954 confluent/rest-proxy "/usr/local/bin/rest…" 4 hours ago Up 4 hours 0.0.0.0:8082->8082/tcp rest-proxy
a6110eab7a84 confluent/schema-registry "/usr/local/bin/sche…" 4 hours ago Up 4 hours 0.0.0.0:8081->8081/tcp schema-registry
c33c9268e4da confluent/kafka "/usr/local/bin/kafk…" 4 hours ago Up 4 hours 0.0.0.0:9092->9092/tcp kafka
be6f2a3b6a2c confluent/zookeeper "/usr/local/bin/zk-d…" 4 hours ago Up 4 hours 2888/tcp, 0.0.0.0:2181->2181/tcp, 3888/tcp zookeeper

注册Schema

user.json

1
2
3
4
5
6
7
8
9
{
"type": "record",
"name": "User",
"fields": [
{"name": "id", "type": "int"},
{"name": "name", "type": "string"},
{"name": "age", "type": "int"}
]
}

注册

1
2
3
4
5
6
7
$ curl -X POST -H "Content-Type: application/vnd.schemaregistry.v1+json" \
--data '{"schema": "{\"type\": \"record\", \"name\": \"User\", \"fields\": [{\"name\": \"id\", \"type\": \"int\"}, {\"name\": \"name\", \"type\": \"string\"}, {\"name\": \"age\", \"type\": \"int\"}]}"}' \
http://localhost:8081/subjects/zhongmingmao/versions
{"id":1}

$ curl http://localhost:8081/subjects/zhongmingmao/versions
[1]

ConfluentProducer

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
private static final String TOPIC = "zhongmingmao";
private static final String USER_SCHEMA = "{\"type\": \"record\", \"name\": \"User\", " +
"\"fields\": [{\"name\": \"id\", \"type\": \"int\"}, " +
"{\"name\": \"name\", \"type\": \"string\"}, {\"name\": \"age\", \"type\": \"int\"}]}";

public static void main(String[] args) throws Exception {
Properties props = new Properties();
props.put("bootstrap.servers", "localhost:9092");
// 使用Confluent实现的KafkaAvroSerializer
props.put("key.serializer", KafkaAvroSerializer.class.getName());
props.put("value.serializer", KafkaAvroSerializer.class.getName());
// 添加Schema服务的地址,用于获取Schema
props.put("schema.registry.url", "http://localhost:8081");

// 因为没有使用Avro生成的对象,因此需要提供Avro Schema
Schema.Parser parser = new Schema.Parser();
Schema schema = parser.parse(USER_SCHEMA);

// 对象类型为Avro GenericRecord
Producer<String, GenericRecord> producer = new KafkaProducer<>(props);

Random rand = new Random();
int id = 0;

try {
while (id < 100) {
id++;
String name = "name" + id;
int age = rand.nextInt(40) + 1;
// ProducerRecord.value是GenericRecord类型,包含了Schema和数据
// 序列化器知道如何从记录获取Schema,把它保存到注册表里,并用它序列化对象数据
GenericRecord user = new GenericData.Record(schema);
user.put("id", id);
user.put("name", name);
user.put("age", age);

ProducerRecord<String, GenericRecord> record = new ProducerRecord<>(TOPIC, user);
producer.send(record);
TimeUnit.SECONDS.sleep(1);
}
} finally {
producer.close();
}
}

ConfluentConsumer

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
private static final String TOPIC = "zhongmingmao";
private static final String GROUP_ID = "zhongmingmao";

public static void main(String[] args) {
Properties props = new Properties();
props.put("bootstrap.servers", "localhost:9092");
props.put("group.id", GROUP_ID);
// 使用Confluent实现的KafkaAvroDeserializer
props.put("key.deserializer", KafkaAvroDeserializer.class.getName());
props.put("value.deserializer", KafkaAvroDeserializer.class.getName());
// 添加Schema服务的地址,用于获取Schema
props.put("schema.registry.url", "http://localhost:8081");
Consumer<String, GenericRecord> consumer = new KafkaConsumer<>(props);

consumer.subscribe(Collections.singletonList(TOPIC));
try {
while (true) {
ConsumerRecords<String, GenericRecord> records = consumer.poll(100);
for (ConsumerRecord<String, GenericRecord> record : records) {
GenericRecord user = record.value();
log.info("value=[id={}, name={}, age={}], partition={}, offset={}",
user.get("id"), user.get("name"), user.get("age"), record.partition(), record.offset());
}
}
} finally {
consumer.close();
}
}
