Git -- Git Flow

主要介绍Git FlowFeature分支、Release分支、Hotfix分支的流程

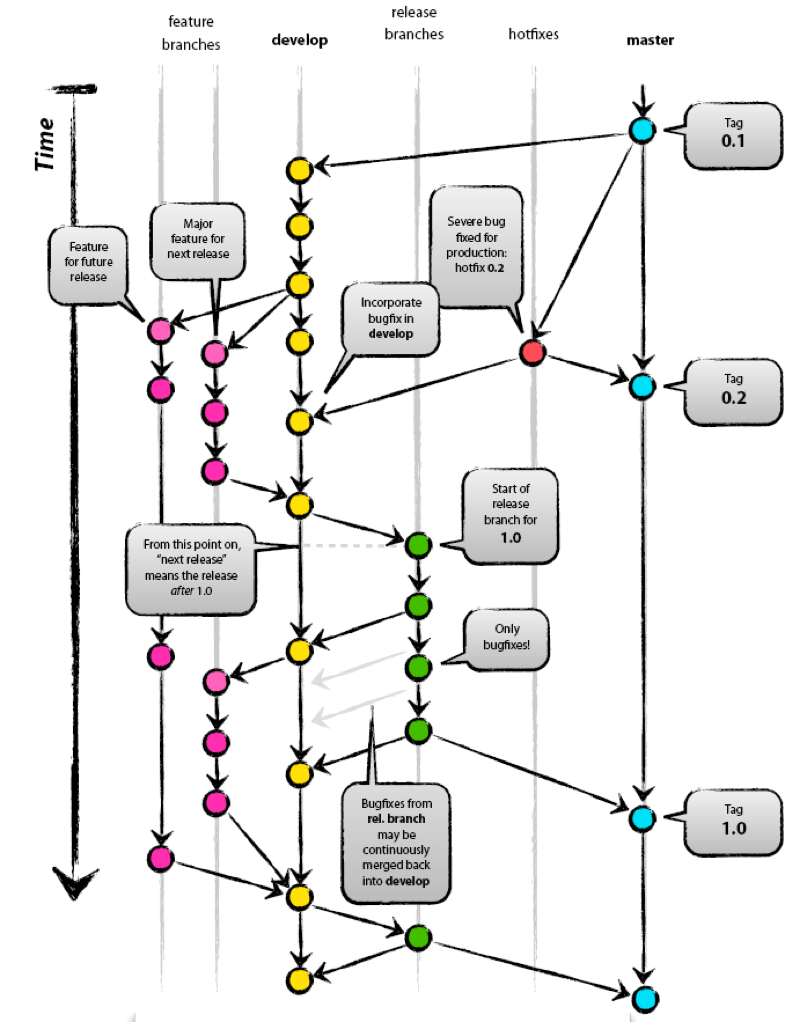

Git Flow

初始化仓库

git flow init:初始化仓库,支持GitFlow分支模型

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
$ git clone https://github.com/hzmajia/gitflow-example.git
Cloning into 'gitflow-example'...
warning: You appear to have cloned an empty repository.
Checking connectivity... done.

$ cd gitflow-example && git flow init
No branches exist yet. Base branches must be created now.
Branch name for production releases: [master]
Branch name for "next release" development: [develop]
How to name your supporting branch prefixes?
Feature branches? [feature/]
Bugfix branches? [bugfix/]
Release branches? [release/]
Hotfix branches? [hotfix/]
Support branches? [support/]
Version tag prefix? []
Hooks and filters directory? [/home/zhongmingmao/gitflow-example/.git/hooks]

$ git branch -vv
* develop 378941f Initial commit
master 378941f [origin/master: gone] Initial commit

$ git push origin develop
Counting objects: 2, done.
Writing objects: 100% (2/2), 163 bytes | 0 bytes/s, done.
Total 2 (delta 0), reused 0 (delta 0)
To https://github.com/hzmajia/gitflow-example.git
* [new branch] develop -> develop

$ git checkout master
Switched to branch 'master'
Your branch is based on 'origin/master', but the upstream is gone.
(use "git branch --unset-upstream" to fixup)

$ git push -u origin master
Total 0 (delta 0), reused 0 (delta 0)
To https://github.com/hzmajia/gitflow-example.git
* [new branch] master -> master
Branch master set up to track remote branch master from origin.

$ git branch -vv
develop 378941f Initial commit
* master 378941f [origin/master] Initial commit

$ git log --oneline --decorate --graph --all
* 378941f (HEAD -> master, origin/master, origin/develop, develop) Initial commit

Feature分支

git flow feature:Feature分支列表
git flow feature start:新建一个Feature分支
git flow publish:将Feature分支推送到远程仓库,并设为上游分支
git flow feature finish:完成一个Feature分支,一般是merge requestpull request的接受者执行

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
$ git flow feature start featureA
Switched to a new branch 'feature/featureA'
Summary of actions:
- A new branch 'feature/featureA' was created, based on 'develop'
- You are now on branch 'feature/featureA'
Now, start committing on your feature. When done, use:
git flow feature finish featureA

$ git branch -vv
develop 378941f Initial commit
* feature/featureA 378941f Initial commit
master 378941f [origin/master] Initial commit

$ git flow feature
* featureA

$ git flow publish featureA
Total 0 (delta 0), reused 0 (delta 0)
To https://github.com/hzmajia/gitflow-example.git
* [new branch] feature/featureA -> feature/featureA
Branch feature/featureA set up to track remote branch feature/featureA from origin.
Already on 'feature/featureA'
Your branch is up-to-date with 'origin/feature/featureA'.
Summary of actions:
- The remote branch 'feature/featureA' was created or updated
- The local branch 'feature/featureA' was configured to track the remote branch
- You are now on branch 'feature/featureA'

$ git branch -vv
develop 378941f Initial commit
* feature/featureA 378941f [origin/feature/featureA] Initial commit
master 378941f [origin/master] Initial commit

$ touch featureA && git add . && git commit -m 'featureA'
[feature/featureA 6e6605d] featureA
1 file changed, 0 insertions(+), 0 deletions(-)
create mode 100644 featureA

$ git branch -vv
develop 378941f Initial commit
* feature/featureA 6e6605d [origin/feature/featureA: ahead 1] featureA
master 378941f [origin/master] Initial commit

$ git push origin feature/featureA # git flow publish featureA
Counting objects: 3, done.
Writing objects: 100% (3/3), 235 bytes | 0 bytes/s, done.
Total 3 (delta 0), reused 0 (delta 0)
To https://github.com/hzmajia/gitflow-example.git
378941f..6e6605d feature/featureA -> feature/featureA

$ git log --oneline --decorate --graph --all
* 6e6605d (HEAD -> feature/featureA, origin/feature/featureA) featureA
* 378941f (origin/master, origin/develop, master, develop) Initial commit

$ git flow feature finish featureA
Switched to branch 'develop'
Updating 378941f..6e6605d
Fast-forward
featureA | 0
1 file changed, 0 insertions(+), 0 deletions(-)
create mode 100644 featureA
To https://github.com/hzmajia/gitflow-example.git
- [deleted] feature/featureA
Deleted branch feature/featureA (was 6e6605d).
Summary of actions:
- The feature branch 'feature/featureA' was merged into 'develop'
- Feature branch 'feature/featureA' has been locally deleted; it has been remotely deleted from 'origin'
- You are now on branch 'develop'

$ git fetch origin

$ git branch -vv
* develop 6e6605d featureA
master 378941f [origin/master] Initial commit

$ ls
featureA

Release分支

git flow release:Release分支列表
git flow release start:新建一个Release分支
git flow publish:将Release分支推送到远程仓库,并设为上游分支
git flow release finish:完成一个Release分支,一般是merge requestpull request的接受者执行

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
$ git flow release start releaseA
Branches 'develop' and 'origin/develop' have diverged.
And local branch 'develop' is ahead of 'origin/develop'.
Switched to a new branch 'release/releaseA'
Summary of actions:
- A new branch 'release/releaseA' was created, based on 'develop'
- You are now on branch 'release/releaseA'
Follow-up actions:
- Bump the version number now!
- Start committing last-minute fixes in preparing your release
- When done, run:
git flow release finish 'releaseA'

$ git push -u origin develop
Counting objects: 3, done.
Writing objects: 100% (3/3), 235 bytes | 0 bytes/s, done.
Total 3 (delta 0), reused 0 (delta 0)
To https://github.com/hzmajia/gitflow-example.git
378941f..6e6605d develop -> develop
Branch develop set up to track remote branch develop from origin.

$ git branch -vv
develop 6e6605d [origin/develop] featureA
master 378941f [origin/master] Initial commit
* release/releaseA 6e6605d featureA

$ git flow release
* releaseA

$ git flow publish releaseA
Total 0 (delta 0), reused 0 (delta 0)
To https://github.com/hzmajia/gitflow-example.git
* [new branch] release/releaseA -> release/releaseA
Branch release/releaseA set up to track remote branch release/releaseA from origin.
Already on 'release/releaseA'
Your branch is up-to-date with 'origin/release/releaseA'.
Summary of actions:
- The remote branch 'release/releaseA' was created or updated
- The local branch 'release/releaseA' was configured to track the remote branch
- You are now on branch 'release/releaseA'

$ git branch -vv
develop 6e6605d [origin/develop] featureA
master 378941f [origin/master] Initial commit
* release/releaseA 6e6605d [origin/release/releaseA] featureA

$ touch releaseA && git add . && git commit -m 'releaseA'
[release/releaseA f993ec4] releaseA
1 file changed, 0 insertions(+), 0 deletions(-)
create mode 100644 releaseA

$ git flow publish releaseA # git push origin release/releaseA
Counting objects: 2, done.
Compressing objects: 100% (2/2), done.
Writing objects: 100% (2/2), 237 bytes | 0 bytes/s, done.
Total 2 (delta 0), reused 0 (delta 0)
To https://github.com/hzmajia/gitflow-example.git
6e6605d..f993ec4 release/releaseA -> release/releaseA
Branch release/releaseA set up to track remote branch release/releaseA from origin.
Already on 'release/releaseA'
Your branch is up-to-date with 'origin/release/releaseA'.
Summary of actions:
- The remote branch 'release/releaseA' was created or updated
- The local branch 'release/releaseA' was configured to track the remote branch
- You are now on branch 'release/releaseA'

$ git log --oneline --decorate --graph --all
* f993ec4 (HEAD -> release/releaseA, origin/release/releaseA) releaseA
* 6e6605d (origin/develop, develop) featureA
* 378941f (origin/master, master) Initial commit

$ git flow release finish releaseA
Switched to branch 'master'
Your branch is up-to-date with 'origin/master'.
Merge made by the 'recursive' strategy.
featureA | 0
releaseA | 0
2 files changed, 0 insertions(+), 0 deletions(-)
create mode 100644 featureA
create mode 100644 releaseA
Switched to branch 'develop'
Your branch is up-to-date with 'origin/develop'.
Merge made by the 'recursive' strategy.
releaseA | 0
1 file changed, 0 insertions(+), 0 deletions(-)
create mode 100644 releaseA
To https://github.com/hzmajia/gitflow-example.git
- [deleted] release/releaseA
Deleted branch release/releaseA (was f993ec4).
Summary of actions:
- Release branch 'release/releaseA' has been merged into 'master'
- The release was tagged 'releaseA'
- Release tag 'releaseA' has been back-merged into 'develop'
- Release branch 'release/releaseA' has been locally deleted; it has been remotely deleted from 'origin'
- You are now on branch 'develop'

$ git branch -vv
* develop 269c207 [origin/develop: ahead 3] Merge tag 'releaseA' into develop
master 4944ec5 [origin/master: ahead 3] Merge branch 'release/releaseA'

$ git push origin master
Counting objects: 3, done.
Compressing objects: 100% (3/3), done.
Writing objects: 100% (3/3), 372 bytes | 0 bytes/s, done.
Total 3 (delta 1), reused 0 (delta 0)
remote: Resolving deltas: 100% (1/1), done.
To https://github.com/hzmajia/gitflow-example.git
378941f..4944ec5 master -> master

$ git push origin develop
Counting objects: 1, done.
Writing objects: 100% (1/1), 238 bytes | 0 bytes/s, done.
Total 1 (delta 0), reused 0 (delta 0)
To https://github.com/hzmajia/gitflow-example.git
6e6605d..269c207 develop -> develop

$ git branch -vv
* develop 269c207 [origin/develop] Merge tag 'releaseA' into develop
master 4944ec5 [origin/master] Merge branch 'release/releaseA'

$ ls
featureA releaseA

Hotfix分支

git flow hotfix:Hotfix分支列表
git flow hotfix start:新建一个Hotfix分支
git flow publish:将Hotfix分支推送到远程仓库,并设为上游分支
git flow hotfix finish:完成一个Hotfix分支,一般是merge requestpull request的接受者执行

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
$ git flow hotfix start hotfixA
Switched to a new branch 'hotfix/hotfixA'
Summary of actions:
- A new branch 'hotfix/hotfixA' was created, based on 'master'
- You are now on branch 'hotfix/hotfixA'
Follow-up actions:
- Start committing your hot fixes
- Bump the version number now!
- When done, run:
git flow hotfix finish 'hotfixA'

$ git branch -vv
develop 269c207 [origin/develop] Merge tag 'releaseA' into develop
* hotfix/hotfixA 4944ec5 Merge branch 'release/releaseA'
master 4944ec5 [origin/master] Merge branch 'release/releaseA'

$ git flow hotfix
* hotfixA

$ git flow publish hotfixA
Total 0 (delta 0), reused 0 (delta 0)
To https://github.com/hzmajia/gitflow-example.git
* [new branch] hotfix/hotfixA -> hotfix/hotfixA
Branch hotfix/hotfixA set up to track remote branch hotfix/hotfixA from origin.
Already on 'hotfix/hotfixA'
Your branch is up-to-date with 'origin/hotfix/hotfixA'.
Summary of actions:
- The remote branch 'hotfix/hotfixA' was created or updated
- The local branch 'hotfix/hotfixA' was configured to track the remote branch
- You are now on branch 'hotfix/hotfixA'

$ git branch -vv
develop 269c207 [origin/develop] Merge tag 'releaseA' into develop
* hotfix/hotfixA 4944ec5 [origin/hotfix/hotfixA] Merge branch 'release/releaseA'
master 4944ec5 [origin/master] Merge branch 'release/releaseA'

$ touch hotfixA && git add . && git commit -m 'hotfixA'
[hotfix/hotfixA e17d475] hotfixA
1 file changed, 0 insertions(+), 0 deletions(-)
create mode 100644 hotfixA

$ git flow publish hotfixA
Counting objects: 2, done.
Compressing objects: 100% (2/2), done.
Writing objects: 100% (2/2), 249 bytes | 0 bytes/s, done.
Total 2 (delta 0), reused 0 (delta 0)
To https://github.com/hzmajia/gitflow-example.git
4944ec5..e17d475 hotfix/hotfixA -> hotfix/hotfixA
Branch hotfix/hotfixA set up to track remote branch hotfix/hotfixA from origin.
Already on 'hotfix/hotfixA'
Your branch is up-to-date with 'origin/hotfix/hotfixA'.
Summary of actions:
- The remote branch 'hotfix/hotfixA' was created or updated
- The local branch 'hotfix/hotfixA' was configured to track the remote branch
- You are now on branch 'hotfix/hotfixA'

$ git log --oneline --decorate --graph --all
* e17d475 (HEAD -> hotfix/hotfixA, origin/hotfix/hotfixA) hotfixA
| * 269c207 (origin/develop, develop) Merge tag 'releaseA' into develop
| |\
| |/
|/|
* | 4944ec5 (tag: releaseA, origin/master, master) Merge branch 'release/releaseA'
|\ \
| * | f993ec4 releaseA
| |/
| * 6e6605d featureA
|/
* 378941f Initial commit

$ git flow hotfix finish hotfixA
Switched to branch 'master'
Your branch is up-to-date with 'origin/master'.
Merge made by the 'recursive' strategy.
hotfixA | 0
1 file changed, 0 insertions(+), 0 deletions(-)
create mode 100644 hotfixA
Switched to branch 'develop'
Your branch is up-to-date with 'origin/develop'.
Merge made by the 'recursive' strategy.
hotfixA | 0
1 file changed, 0 insertions(+), 0 deletions(-)
create mode 100644 hotfixA
To https://github.com/hzmajia/gitflow-example.git
- [deleted] hotfix/hotfixA
Deleted branch hotfix/hotfixA (was e17d475).
Summary of actions:
- Hotfix branch 'hotfix/hotfixA' has been merged into 'master'
- The hotfix was tagged 'hotfixA'
- Hotfix tag 'hotfixA' has been back-merged into 'develop'
- Hotfix branch 'hotfix/hotfixA' has been locally deleted; it has been remotely deleted from 'origin'
- You are now on branch 'develop'

$ git branch -vv
* develop c293bc1 [origin/develop: ahead 3] Merge tag 'hotfixA' into develop
master 87bca9d [origin/master: ahead 2] Merge branch 'hotfix/hotfixA'

$ git push origin master
Counting objects: 3, done.
Compressing objects: 100% (3/3), done.
Writing objects: 100% (3/3), 338 bytes | 0 bytes/s, done.
Total 3 (delta 1), reused 0 (delta 0)
remote: Resolving deltas: 100% (1/1), done.
To https://github.com/hzmajia/gitflow-example.git
4944ec5..87bca9d master -> master

$ git push origin master
Counting objects: 1, done.
Writing objects: 100% (1/1), 238 bytes | 0 bytes/s, done.
Total 1 (delta 0), reused 0 (delta 0)
To https://github.com/hzmajia/gitflow-example.git
269c207..c293bc1 develop -> develop

$ git log --oneline --decorate --graph --all
* c293bc1 (HEAD -> develop, origin/develop) Merge tag 'hotfixA' into develop
|\
| * 87bca9d (tag: hotfixA, origin/master, master) Merge branch 'hotfix/hotfixA'
| |\
| | * e17d475 hotfixA
| |/
* | 269c207 Merge tag 'releaseA' into develop
|\ \
| |/
| * 4944ec5 (tag: releaseA) Merge branch 'release/releaseA'
| |\
| | * f993ec4 releaseA
| |/
|/|
* | 6e6605d featureA
|/
* 378941f Initial commit
0%
