JVM基础 -- 晋升规则

本文将通过最基本的垃圾收集器(Serial + Serial Old),简单地讲述JVM内存分配和回收过程中的3个基本的晋升规则:大对象直接晋升对象年龄晋升动态晋升
代码托管在:https://github.com/zhongmingmao/jvm_demo

-XX:+UseSerialGC

  1. 新生代采用Serial垃圾收集器(Copying算法,单线程Stop The World
  2. 老年代采用Serial Old垃圾收集器(Mark-Compact算法,单线程Stop The World

Minor GC / Major GC / Full GC

常规理解

  1. Eden空间不够 ➔ Minor GC ➔ 回收Young Generation
  2. Old Generation空间不够 ➔ Major GC ➔ 回收Old Generation
  3. Method AreaJava 8开始由MetaSpace实现,之前由Permanent Generation实现)空间不够 ➔ Full GC ➔ 回收Young Generation+Old Generation+Method Area

最难区分的是Major GCFull GC,其实并没有明确规定两者的区别,因此不要以Minor GCMajor GCFull GC的方式来思考问题,而应该关注

  1. GC是否需要Stop-The-World
  2. GC能否并发(不是并行,是并发!)
  3. 应用的延迟吞吐量

本文认为Major GCFull GC,不作区分

Minor GC

  1. 发生在新生代,当Eden区域没有足够空间进行分配
  2. Java对象大多具有短命的特性
  3. Minor GC非常频繁,速度也比较
  4. Minor GC会造成Stop-The-World,但由于新生代的对象为大多为短命对象,因此由Stop-The-World而造成的延迟可以忽略

Major GC / Full GC

  1. 发生在老年代
  2. 出现Major GC,经常伴随至少一次Minor GC
  3. 速度比较SpeedOf(Minor GC) ≈ 10 * SpeedOf(Major GC)
  4. Major GC也会造成Stop-The-World,但由于老年代的对象为大多为长命对象,因此由Stop-The-World而造成的延迟可能会比较大,因此才会出现并发收集器CMSG1(Java 9默认)

大对象直接晋升

代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
// JVM Args : -Xms20m -Xmx20m -Xmn10m -XX:SurvivorRatio=8 -XX:+UseSerialGC -XX:+PrintGCDetails
// 堆大小:20M
// 新生代大小:10M
// Eden区大小:8M
// Survivor区大小:1M
// 老年代大小:10M
public class MinorGCAndFullGC {
private static final int _1MB = 1024 * 1024;

public static void main(String[] args) {
System.gc();
byte[] b1 = new byte[5 * _1MB];
byte[] b2 = new byte[5 * _1MB];// 1次Minor GC
byte[] b3 = new byte[5 * _1MB];// 1次Minor GC + 1次Full GC ⇒ OOM
}
}

运行结果

1
2
3
4
5
6
7
8
9
10
11
12
13
14
[Full GC (System.gc()) [Tenured: 0K->467K(10240K), 0.0037172 secs] 2217K->467K(19456K), [Metaspace: 3177K->3177K(1056768K)], 0.0037645 secs] [Times: user=0.00 sys=0.00, real=0.00 secs]
[GC (Allocation Failure) [DefNew: 5447K->4K(9216K), 0.0036997 secs] 5915K->5592K(19456K), 0.0037186 secs] [Times: user=0.00 sys=0.00, real=0.00 secs]
[GC (Allocation Failure) [DefNew: 5209K->5209K(9216K), 0.0000165 secs][Tenured: 5587K->5587K(10240K), 0.0029173 secs] 10796K->10713K(19456K), [Metaspace: 3270K->3270K(1056768K)], 0.0029714 secs] [Times: user=0.00 sys=0.00, real=0.00 secs]
[Full GC (Allocation Failure) [Tenured: 5587K->5527K(10240K), 0.0036178 secs] 10713K->10653K(19456K), [Metaspace: 3270K->3270K(1056768K)], 0.0036448 secs] [Times: user=0.01 sys=0.00, real=0.01 secs]
Heap
def new generation total 9216K, used 5508K [0x00000007bec00000, 0x00000007bf600000, 0x00000007bf600000)
eden space 8192K, 67% used [0x00000007bec00000, 0x00000007bf161370, 0x00000007bf400000)
from space 1024K, 0% used [0x00000007bf500000, 0x00000007bf500000, 0x00000007bf600000)
to space 1024K, 0% used [0x00000007bf400000, 0x00000007bf400000, 0x00000007bf500000)
tenured generation total 10240K, used 5527K [0x00000007bf600000, 0x00000007c0000000, 0x00000007c0000000)
the space 10240K, 53% used [0x00000007bf600000, 0x00000007bfb65f68, 0x00000007bfb66000, 0x00000007c0000000)
Metaspace used 3330K, capacity 4496K, committed 4864K, reserved 1056768K
class space used 370K, capacity 388K, committed 512K, reserved 1048576K
Exception in thread "main" java.lang.OutOfMemoryError: Java heap space

运行过程

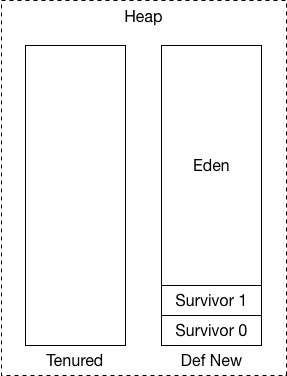

System.gc()

对应的GC日志

1
[Full GC (System.gc()) [Tenured: 0K->467K(10240K), 0.0037172 secs] 2217K->467K(19456K), [Metaspace: 3177K->3177K(1056768K)], 0.0037645 secs] [Times: user=0.00 sys=0.00, real=0.00 secs]
  1. 进行Full GC的原因是代码调用System.gc()
  2. 总大小为19456K20M
  3. 老年代Tenured Generation)总大小为10240K = 10M,目前占用467K,可忽略
  4. 新生代Def New Generation)目前占用467K-467K=0K,总大小 = 堆大小 - 老年代大小 ≈ 10MSurvivorRatio=8,因此Eden区大小为8MSurvivor区大小为1M

byte[] b1 = new byte[5 * _1MB]

Eden区8M空闲空间,能完全容纳b1,不会进行GC

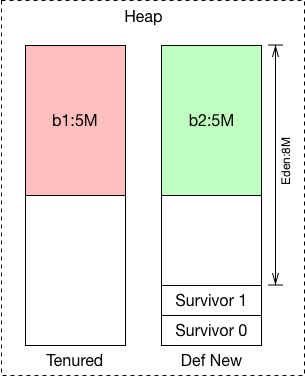

byte[] b2 = new byte[5 * _1MB]

对应的GC日志

1
[GC (Allocation Failure) [DefNew: 5447K->4K(9216K), 0.0036997 secs] 5915K->5592K(19456K), 0.0037186 secs] [Times: user=0.00 sys=0.00, real=0.00 secs]
1. `Eden`区只有`8M`,此时已经分配了`b1`,最多只剩下`3M`的可用空间,`Serial`采集器采用`Copying`算法,不足以容纳`b2`,触发`Minor GC` 2. 进行`Minor GC`的原因是`Allocation Failure`,即内存分配失败,与上面分析一致 3. 进行`Minor GC`,首先尝试将`Eden`区和`Survivor 0`区中的`存活对象`一起移到`Survivor 1`区,`b1`是强引用,依旧存活,但由于`Survivor 1`区只有`1M`,无法容纳`b1`,尝试将`b1`直接晋升到`Tenured`区 4. 此时`Tenured`有`10M`的可用空间,能容纳`b1`,可以将`b1`晋升到`Tenured`区,并释放`b1`原本在`Eden`区占用的内存空间 5. `Minor GC`结束后,`b2`便能顺利地在`Eden`区进行分配

byte[] b3 = new byte[5 * _1MB]

对应的GC日志

1
2
[GC (Allocation Failure) [DefNew: 5209K->5209K(9216K), 0.0000165 secs][Tenured: 5587K->5587K(10240K), 0.0029173 secs] 10796K->10713K(19456K), [Metaspace: 3270K->3270K(1056768K)], 0.0029714 secs] [Times: user=0.00 sys=0.00, real=0.00 secs]
[Full GC (Allocation Failure) [Tenured: 5587K->5527K(10240K), 0.0036178 secs] 10713K->10653K(19456K), [Metaspace: 3270K->3270K(1056768K)], 0.0036448 secs] [Times: user=0.01 sys=0.00, real=0.01 secs]
  1. 由于Eden区此时最多有3M的可用空间,要分配b3,首先触发一次Minor GC
  2. 由于内存空间(EdenSurvivor 0Tenured)不足,Minor GC也会失败,进而触发Full GC
  3. Tenured区采用Serial Old收集器,Full GC时会尝试采用Mark-Compact算法进行GC,但依旧会失败,进而导致抛出OutOfMemoryError

小结

尽量避免使用需要连续内存空间的短命大对象,例如长字符串基本类型的大数组,因为这会导致Minor GC的时候,这些短命大对象有可能会直接晋升到老年代,进而加大Full GC的频率

对象年龄晋升

对象每经历一次Minor GC,年龄就会增加1,到了一定的阈值(-XX:MaxTenuringThreshold,默认是15),就会晋升到老年代

代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
/**
* 校验JVM参数 -XX:MaxTenuringThreshold
*
* @author zhongmingmao zhongmingmao0625@gmail.com
*/
public class TenuringThreshold {

private static final int _10MB = 10 * 1024 * 1024;
private static Pattern BIN_PATTERN = Pattern.compile("\\(((\\d{8}\\s?){4})\\)");

// JVM Args : -Xms200m -Xmx200m -Xmn100m -XX:SurvivorRatio=8 -XX:MaxTenuringThreshold=3
// -XX:+UseSerialGC -XX:+PrintGCDetails -Djol.tryWithSudo=true
public static void main(String[] args) {

System.gc();
byte[] b = new byte[_10MB / 4];
System.out.println(String.format("Init Address : %s\n", VM.current().addressOf(b)));

for (int i = 0; i < 6; ++i) {
// 从i=1开始,每分配一次bytes,就会触发一次Minor GC
// 当对象b的GCAge < MaxTenuringThreshold -> 在两个Survivor区之间来回移动
// 当对象b的GCAge >= MaxTenuringThreshold -> 晋升到Tenured区
byte[] bytes = new byte[5 * _10MB];
System.out.println(String.format("Address[%s] : %s , GC Age : %s", i,
VM.current().addressOf(b),
getObjectGCAge(b)));
System.out.println();
}
}

/**
* 获取对象的GC年龄<br/>
* Java对象头结构 See http://hg.openjdk.java.net/jdk8/jdk8/hotspot/file/87ee5ee27509/src/share/vm/oops/markOop.hpp
*/
private static int getObjectGCAge(Object object) {
/*
ClassLayout.parseInstance(object).toPrintable()的完整格式
[B object internals:
OFFSET SIZE TYPE DESCRIPTION VALUE
0 4 (object header) 19 00 00 00 (00011001 00000000 00000000
00000000) (25)
4 4 (object header) 00 00 00 00 (00000000 00000000 00000000
00000000) (0)
8 4 (object header) f5 00 00 f8 (11110101 00000000 00000000
11111000) (-134217483)
12 4 (object header) 00 00 28 00 (00000000 00000000 00101000
00000000) (2621440)
16 2621440 byte [B.<elements> N/A
Instance size: 2621456 bytes
Space losses: 0 bytes internal + 0 bytes external = 0 bytes total
* */
String line = ClassLayout.parseInstance(object).toPrintable().split("\n")[2];
Matcher matcher = BIN_PATTERN.matcher(line);
if (matcher.find()) {
return Integer.parseInt(matcher.group(1).split("\\s")[0].substring(1, 5), 2);
}
return -1;
}
}

运行结果

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
[Full GC (System.gc()) [Tenured: 0K->452K(102400K), 0.0032760 secs] 6555K->452K(194560K), [Metaspace: 3198K->3198K(1056768K)], 0.0033038 secs] [Times: user=0.00 sys=0.00, real=0.00 secs]
Init Address : 33076281344

Address[0] : 33076281344 , GC Age : 0

[GC (Allocation Failure) [DefNew: 70169K->3565K(92160K), 0.0051274 secs] 70622K->4017K(194560K), 0.0051485 secs] [Times: user=0.01 sys=0.00, real=0.00 secs]
Address[1] : 33170780832 , GC Age : 1

[GC (Allocation Failure) [DefNew: 57128K->3417K(92160K), 0.0075981 secs] 57580K->3869K(194560K), 0.0076253 secs] [Times: user=0.01 sys=0.01, real=0.00 secs]
Address[2] : 33160295048 , GC Age : 2

[GC (Allocation Failure) [DefNew: 56715K->3417K(92160K), 0.0020149 secs] 57168K->3869K(194560K), 0.0020339 secs] [Times: user=0.00 sys=0.00, real=0.00 secs]
Address[3] : 33170780808 , GC Age : 3

[GC (Allocation Failure) [DefNew: 56533K->0K(92160K), 0.0052362 secs] 56985K->3870K(194560K), 0.0052590 secs] [Times: user=0.00 sys=0.00, real=0.01 secs]
Address[4] : 33181729784 , GC Age : 3

[GC (Allocation Failure) [DefNew: 52773K->0K(92160K), 0.0004461 secs] 56643K->3870K(194560K), 0.0004610 secs] [Times: user=0.01 sys=0.00, real=0.00 secs]
Address[5] : 33181729784 , GC Age : 3

Heap
def new generation total 92160K, used 53599K [0x00000007b3800000, 0x00000007b9c00000, 0x00000007b9c00000)
eden space 81920K, 65% used [0x00000007b3800000, 0x00000007b6c57cd8, 0x00000007b8800000)
from space 10240K, 0% used [0x00000007b9200000, 0x00000007b92000f0, 0x00000007b9c00000)
to space 10240K, 0% used [0x00000007b8800000, 0x00000007b8800000, 0x00000007b9200000)
tenured generation total 102400K, used 3869K [0x00000007b9c00000, 0x00000007c0000000, 0x00000007c0000000)
the space 102400K, 3% used [0x00000007b9c00000, 0x00000007b9fc7710, 0x00000007b9fc7800, 0x00000007c0000000)
Metaspace used 6569K, capacity 6832K, committed 7040K, reserved 1056768K
class space used 765K, capacity 843K, committed 896K, reserved 1048576K

byte[] b = new byte[_10MB / 4]

1
Init Address : 33076281344

尝试分配对象bEden区,内存空间充足,初始内存地址为33076281344GC年龄0

循环i=0

1
Address[0] : 33076281344 , GC Age : 0

尝试在Eden区分配5*_10MB的内存空间,内存空间充足,不需要触发Minor GC对象b的内存地址不变,依旧是33076281344,在Eden区,GC年龄0

循环i=1

1
2
[GC (Allocation Failure) [DefNew: 70169K->3565K(92160K), 0.0051274 secs] 70622K->4017K(194560K), 0.0051485 secs] [Times: user=0.01 sys=0.00, real=0.00 secs]
Address[1] : 33170780832 , GC Age : 1

尝试在Eden区再分配5*_10MB的内存空间,内存空间不足,触发Minor GC,循环i=0分配的5*_10MB的内存空间被回收,对象b被移动到了Survivor 0区,内存地址变成了33170780832GC年龄1

循环i=2

1
2
[GC (Allocation Failure) [DefNew: 57128K->3417K(92160K), 0.0075981 secs] 57580K->3869K(194560K), 0.0076253 secs] [Times: user=0.01 sys=0.01, real=0.00 secs]
Address[2] : 33160295048 , GC Age : 2

尝试在Eden区再分配5*_10MB的内存空间,内存空间不足,触发Minor GC,循环i=1分配的5*_10MB的内存空间被回收,对象b被移动到了Survivor 1区,内存地址变成了33160295048GC年龄2

循环i=3

1
2
[GC (Allocation Failure) [DefNew: 56715K->3417K(92160K), 0.0020149 secs] 57168K->3869K(194560K), 0.0020339 secs] [Times: user=0.00 sys=0.00, real=0.00 secs]
Address[3] : 33170780808 , GC Age : 3

尝试在Eden区再分配5*_10MB的内存空间,内存空间不足,触发Minor GC,循环i=2分配的5*_10MB的内存空间被回收,对象b再次被移动到了Survivor 0区,内存地址变成了33170780808GC年龄3

循环i=4

1
2
[GC (Allocation Failure) [DefNew: 56533K->0K(92160K), 0.0052362 secs] 56985K->3870K(194560K), 0.0052590 secs] [Times: user=0.00 sys=0.00, real=0.01 secs]
Address[4] : 33181729784 , GC Age : 3

尝试在Eden区再分配5*_10MB的内存空间,内存空间不足,触发Minor GC,循环i=3分配的5*_10MB的内存空间被回收,对象bGC年龄已经达到了MaxTenuringThreshold,可以直接晋升到Tenured区,内存地址变成了33181729784GC年龄依旧为3,不会再增加

循环i=5

1
2
[GC (Allocation Failure) [DefNew: 52773K->0K(92160K), 0.0004461 secs] 56643K->3870K(194560K), 0.0004610 secs] [Times: user=0.01 sys=0.00, real=0.00 secs]
Address[5] : 33181729784 , GC Age : 3

尝试在Eden区再分配5*_10MB的内存空间,内存空间不足,触发Minor GC,循环i=4分配的5*_10MB的内存空间被回收,对象b已经在Tenured区,此时并不是Full GC,内存地址不会改变,依旧是33181729784GC年龄也依旧是3

动态晋升

Minor GC时,如果在Survivor相同年龄的所有对象大小之和0.5 * sizeof(Survivor)大于或等于该年龄的对象直接晋升到老年代,无须考虑MaxTenuringThreshold

代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
/**
* 验证动态晋升<br/>
*
* @author zhongmingmao zhongmingmao@0625@gmail.com
*/
public class DynamicGCAge {

private static final int _10MB = 10 * 1024 * 1024;
private static Pattern BIN_PATTERN = Pattern.compile("\\(((\\d{8}\\s?){4})\\)");

// JVM Args : -Xms200m -Xmx200m -Xmn100m -XX:SurvivorRatio=8 -XX:+UseSerialGC
// -XX:+PrintGCDetails -Djol.tryWithSudo=true
public static void main(String[] args) {
System.gc();
byte[] b0 = new byte[_10MB / 8];
byte[] b1 = null;
byte[] b2 = null;
byte[] b3 = null;
byte[] b4 = null;
System.out.println(getObjectInfo("b0", b0));
System.out.println();
for (int i = 0; i < 5; ++i) {
// i=2才实例化b1~b4,b1的GC年龄比b1~b4大,且b1~b4的总大小等于Survivor区的一半,下次Minor GC,能直接晋升
if (i == 2) {
b1 = new byte[_10MB / 8];
b2 = new byte[_10MB / 8];
b3 = new byte[_10MB / 8];
b4 = new byte[_10MB / 8];
}
byte[] bytes = new byte[5 * _10MB];

System.out.println(getObjectInfo("b0", b0));
System.out.println(getObjectInfo("b1", b1));
System.out.println(getObjectInfo("b2", b2));
System.out.println(getObjectInfo("b3", b3));
System.out.println(getObjectInfo("b4", b4));
System.out.println();
}
}

private static int getObjectGCAge(Object object) {
if (null == object) {
return -1;
}
String line = ClassLayout.parseInstance(object).toPrintable().split("\n")[2];
Matcher matcher = BIN_PATTERN.matcher(line);
if (matcher.find()) {
return Integer.parseInt(matcher.group(1).split("\\s")[0].substring(1, 5), 2);
}
return 0;
}

private static long getObjectAddress(Object object) {
return null == object ? -1 : VM.current().addressOf(object);
}

private static String getObjectInfo(String name, Object object) {
return String.format("Obj[%s] , Address:[%s] , GCAge:[%s]",
name,
getObjectAddress(object),
getObjectGCAge(object));
}
}

运行结果

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
[Full GC (System.gc()) [Tenured: 0K->484K(102400K), 0.0046554 secs] 6555K->484K(194560K), [Metaspace: 3346K->3346K(1056768K)], 0.0047017 secs] [Times: user=0.01 sys=0.00, real=0.00 secs]
Obj[b0] , Address:[33076281344] , GCAge:[0]

Obj[b0] , Address:[33076281344] , GCAge:[0]
Obj[b1] , Address:[-1] , GCAge:[-1]
Obj[b2] , Address:[-1] , GCAge:[-1]
Obj[b3] , Address:[-1] , GCAge:[-1]
Obj[b4] , Address:[-1] , GCAge:[-1]

[GC (Allocation Failure) [DefNew: 67248K->2254K(92160K), 0.0069139 secs] 67732K->2738K(194560K), 0.0069444 secs] [Times: user=0.00 sys=0.01, real=0.01 secs]
Obj[b0] , Address:[33170752344] , GCAge:[1]
Obj[b1] , Address:[-1] , GCAge:[-1]
Obj[b2] , Address:[-1] , GCAge:[-1]
Obj[b3] , Address:[-1] , GCAge:[-1]
Obj[b4] , Address:[-1] , GCAge:[-1]

[GC (Allocation Failure) [DefNew: 59673K->7226K(92160K), 0.0059408 secs] 60157K->7710K(194560K), 0.0059641 secs] [Times: user=0.00 sys=0.00, real=0.01 secs]
Obj[b0] , Address:[33160266584] , GCAge:[2]
Obj[b1] , Address:[33161577320] , GCAge:[1]
Obj[b2] , Address:[33162888056] , GCAge:[1]
Obj[b3] , Address:[33164198792] , GCAge:[1]
Obj[b4] , Address:[33165509528] , GCAge:[1]

[GC (Allocation Failure) [DefNew: 60004K->0K(92160K), 0.0086877 secs] 60488K->7710K(194560K), 0.0087102 secs] [Times: user=0.00 sys=0.01, real=0.00 secs]
Obj[b0] , Address:[33181733760] , GCAge:[2]
Obj[b1] , Address:[33183044496] , GCAge:[1]
Obj[b2] , Address:[33184355232] , GCAge:[1]
Obj[b3] , Address:[33185665968] , GCAge:[1]
Obj[b4] , Address:[33186976704] , GCAge:[1]

[GC (Allocation Failure) [DefNew: 53328K->0K(92160K), 0.0009302 secs] 61039K->7710K(194560K), 0.0009761 secs] [Times: user=0.00 sys=0.00, real=0.00 secs]
Obj[b0] , Address:[33181733760] , GCAge:[2]
Obj[b1] , Address:[33183044496] , GCAge:[1]
Obj[b2] , Address:[33184355232] , GCAge:[1]
Obj[b3] , Address:[33185665968] , GCAge:[1]
Obj[b4] , Address:[33186976704] , GCAge:[1]

Heap
def new generation total 92160K, used 53610K [0x00000007b3800000, 0x00000007b9c00000, 0x00000007b9c00000)
eden space 81920K, 65% used [0x00000007b3800000, 0x00000007b6c5aa18, 0x00000007b8800000)
from space 10240K, 0% used [0x00000007b8800000, 0x00000007b8800050, 0x00000007b9200000)
to space 10240K, 0% used [0x00000007b9200000, 0x00000007b9200000, 0x00000007b9c00000)
tenured generation total 102400K, used 7710K [0x00000007b9c00000, 0x00000007c0000000, 0x00000007c0000000)
the space 102400K, 7% used [0x00000007b9c00000, 0x00000007ba387ae8, 0x00000007ba387c00, 0x00000007c0000000)
Metaspace used 6608K, capacity 6832K, committed 7040K, reserved 1056768K
class space used 765K, capacity 843K, committed 896K, reserved 1048576K

byte[] b0 = new byte[_10MB / 8]

1
Obj[b0] , Address:[33076281344] , GCAge:[0]

尝试分配对象b0Eden区,内存空间充足,初始内存地址为33076281344GC年龄0

循环i=0

1
2
3
4
5
Obj[b0] , Address:[33076281344] , GCAge:[0]
Obj[b1] , Address:[-1] , GCAge:[-1]
Obj[b2] , Address:[-1] , GCAge:[-1]
Obj[b3] , Address:[-1] , GCAge:[-1]
Obj[b4] , Address:[-1] , GCAge:[-1]
  1. 尝试在Eden区分配5*_10MB的内存空间,内存空间充足,不需要触发Minor GC对象b0的内存地址不变,依旧是33076281344,在Eden区,GC年龄0
  2. b1~b4尚未实例化

循环i=1

1
2
3
4
5
6
[GC (Allocation Failure) [DefNew: 67248K->2254K(92160K), 0.0069139 secs] 67732K->2738K(194560K), 0.0069444 secs] [Times: user=0.00 sys=0.01, real=0.01 secs]
Obj[b0] , Address:[33170752344] , GCAge:[1]
Obj[b1] , Address:[-1] , GCAge:[-1]
Obj[b2] , Address:[-1] , GCAge:[-1]
Obj[b3] , Address:[-1] , GCAge:[-1]
Obj[b4] , Address:[-1] , GCAge:[-1]
  1. 尝试在Eden区再分配5*_10MB的内存空间,内存空间不足,触发Minor GC,循环i=0分配的5*_10MB的内存空间被回收,对象b0被移动到了Survivor 0区,内存地址变成了33170752344GC年龄1
  2. b1~b4尚未实例化

循环i=2

1
2
3
4
5
6
[GC (Allocation Failure) [DefNew: 59673K->7226K(92160K), 0.0059408 secs] 60157K->7710K(194560K), 0.0059641 secs] [Times: user=0.00 sys=0.00, real=0.01 secs]
Obj[b0] , Address:[33160266584] , GCAge:[2]
Obj[b1] , Address:[33161577320] , GCAge:[1]
Obj[b2] , Address:[33162888056] , GCAge:[1]
Obj[b3] , Address:[33164198792] , GCAge:[1]
Obj[b4] , Address:[33165509528] , GCAge:[1]
  1. 尝试在Eden区再分配b1~b4的内存空间,内存空间充足,不会触发Minor GC
  2. 尝试在Eden区再分配5*_10MB的内存空间,内存空间不足,触发Minor GC,循环i=1分配的5*_10MB的内存空间被回收,对象b0被移动到了Survivor 1区,内存地址变成了33160266584GC年龄2
  3. 另外这次Minor GC也把b1~b4移动到了Survivor 1区,具体信息GC日志所示

循环i=3

1
2
3
4
5
6
[GC (Allocation Failure) [DefNew: 60004K->0K(92160K), 0.0086877 secs] 60488K->7710K(194560K), 0.0087102 secs] [Times: user=0.00 sys=0.01, real=0.00 secs]
Obj[b0] , Address:[33181733760] , GCAge:[2]
Obj[b1] , Address:[33183044496] , GCAge:[1]
Obj[b2] , Address:[33184355232] , GCAge:[1]
Obj[b3] , Address:[33185665968] , GCAge:[1]
Obj[b4] , Address:[33186976704] , GCAge:[1]

尝试在Eden区再分配5*_10MB的内存空间,内存空间不足,触发Minor GC,循环i=2分配的5*_10MB的内存空间被回收,此时Survivor 1区中b1~b4具有相同的GC年龄总大小 = 5M = 0.5 * sizeof(Survivor),可以进行动态晋升,所有GC年龄大于等于1的对象都可以直接晋升到老年代,因此b0~b4直接晋升,具体信息GC日志所示

循环i=4

1
2
3
4
5
6
[GC (Allocation Failure) [DefNew: 53328K->0K(92160K), 0.0009302 secs] 61039K->7710K(194560K), 0.0009761 secs] [Times: user=0.00 sys=0.00, real=0.00 secs]
Obj[b0] , Address:[33181733760] , GCAge:[2]
Obj[b1] , Address:[33183044496] , GCAge:[1]
Obj[b2] , Address:[33184355232] , GCAge:[1]
Obj[b3] , Address:[33185665968] , GCAge:[1]
Obj[b4] , Address:[33186976704] , GCAge:[1]

尝试在Eden区再分配5*_10MB的内存空间,内存空间不足,触发Minor GC,循环i=3分配的5*_10MB的内存空间被回收,此时b0~b4都已经在老年代中了,此时只是Minor GC,内存地址和GC年龄都不会改变

0%
