JVM基础 -- VirtualMachineError实例

VirtualMachineError有两个常见的实现类:StackOverflowErrorOutOfMemoryError,本文将用代码分析几种情况的VirtualMachineError

JVM参数

内存区域 虚拟机栈
VM Stack

Heap
方法区
Method Area
共享/隔离 线程隔离 线程共享 线程共享
存放的数据 栈帧 Stack Frame 对象实例/数组 类信息、常量、静态变量等数据
异常情况 StackOverflowError
OutOfMemoryError
OutOfMemoryError OutOfMemoryError
JVM参数 -Xss -Xms
-Xmx
-XX:PermSize
-XX:MaxPermSize
-XX:MetaspaceSize
-XX:MaxMetaspaceSize

注:在JDK8之前,Hotspot JVM采用永生代(Permanent Generation)来实现方法区(Method Area),从JDK8开始,已经移除了永生代,使用Metaspace进行替代,相关连接请参考:

  1. http://blog.csdn.net/zhushuai1221/article/details/52122880
  2. http://openjdk.java.net/jeps/122
  3. https://stackoverflow.com/questions/18339707/permgen-elimination-in-jdk-8

实例

VM Stack - StackOverflowError

代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
public class VMStackSOF {
private int stackDepth = 0;

public void stackLeak() {
++stackDepth;
stackLeak();
}

@Override
public String toString() {
return String.format("stackDepth:%s", stackDepth);
}

// JDK ➔ 7
// JVM Args ➔ -Xss256k
// -Xss ➔ VM Stack大小
public static void main(String[] args) {
VMStackSOF sof = new VMStackSOF();
try {
sof.stackLeak();
} catch (Throwable e) {
System.out.println(e.getClass().getCanonicalName());
System.out.println(sof);
}
}
}

运行结果

1
2
java.lang.StackOverflowError
stackDepth:1890

分析

  1. VM Stack线程私有,当线程执行一个方法时,会在VM Stack上创建一个Stack FrameVM Stack类似于Stack(FILO)的数据结构,最上层的Stack Frame当前线程执行的方法
  2. 方法从调用到执行完成,对应着Stack FrameVM Stack从入栈到出栈的过程
  3. 由于VM Stack的空间有限,当递归调用的深度过大,有可能会抛出StackOverflowError

Heap - OutOfMemoryError

代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
public class HeapOOM {
static class OOMObject {
private static final int _1_MB = 1 * 1024 * 1024;
private final byte[] body = new byte[_1_MB];
}

// JDK ➔ 7
// JVM Args ➔ -Xms10M -Xmx10M -XX:+HeapDumpOnOutOfMemoryError -verbose:gc -XX:+PrintGCDetails -XX:+UseSerialGC
// -Xms ➔ 初始堆内存大小
// -Xmx ➔ 最大堆内存大小
// -XX:+HeapDumpOnOutOfMemoryError ➔ 当发生OutOfMemoryError,生成Heap Dump文件,便于MAT等工具进分析
// -XX:+PrintGCDetails ➔ 打印GC日志
// -XX:+UseSerialGC ➔ 新生代采用Serial收集器,老年代采用Serial Old收集器
public static void main(String[] args) {
List<OOMObject> list = new ArrayList<>();
while (true) {
list.add(new OOMObject());
}
}
}

运行结果

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
[GC[DefNew: 2542K->320K(3072K), 0.0030860 secs] 2542K->1392K(9920K), 0.0031220 secs] [Times: user=0.00 sys=0.01, real=0.01 secs]
[GC[DefNew: 2520K->0K(3072K), 0.0036840 secs] 3593K->3440K(9920K), 0.0037070 secs] [Times: user=0.00 sys=0.00, real=0.00 secs]
[GC[DefNew: 2094K->0K(3072K), 0.0024930 secs] 5534K->5489K(9920K), 0.0025120 secs] [Times: user=0.00 sys=0.00, real=0.01 secs]
[GC[DefNew: 2078K->2078K(3072K), 0.0000150 secs][Tenured: 5488K->6512K(6848K), 0.0062400 secs] 7567K->7537K(9920K), [Perm : 2973K->2973K(21248K)], 0.0062960 secs] [Times: user=0.01 sys=0.00, real=0.00 secs]
[Full GC[Tenured: 6512K->6512K(6848K), 0.0043250 secs] 8569K->8562K(9920K), [Perm : 2982K->2982K(21248K)], 0.0043490 secs] [Times: user=0.01 sys=0.00, real=0.01 secs]
[Full GC[Tenured: 6512K->6475K(6848K), 0.0054820 secs] 8562K->8525K(9920K), [Perm : 2982K->2981K(21248K)], 0.0055010 secs] [Times: user=0.00 sys=0.00, real=0.00 secs]
java.lang.OutOfMemoryError: Java heap space
Dumping heap to java_pid96337.hprof ...
Heap dump file created [9431959 bytes in 0.064 secs]
Exception in thread "main" java.lang.OutOfMemoryError: Java heap space

Heap
def new generation total 3072K, used 2214K [0x00000007fa400000, 0x00000007fa750000, 0x00000007fa750000)
eden space 2752K, 80% used [0x00000007fa400000, 0x00000007fa629bc8, 0x00000007fa6b0000)
from space 320K, 0% used [0x00000007fa700000, 0x00000007fa700000, 0x00000007fa750000)
to space 320K, 0% used [0x00000007fa6b0000, 0x00000007fa6b0000, 0x00000007fa700000)
tenured generation total 6848K, used 6475K [0x00000007fa750000, 0x00000007fae00000, 0x00000007fae00000)
the space 6848K, 94% used [0x00000007fa750000, 0x00000007fada2da0, 0x00000007fada2e00, 0x00000007fae00000)
compacting perm gen total 21248K, used 3124K [0x00000007fae00000, 0x00000007fc2c0000, 0x0000000800000000)
the space 21248K, 14% used [0x00000007fae00000, 0x00000007fb10d130, 0x00000007fb10d200, 0x00000007fc2c0000)
No shared spaces configured.

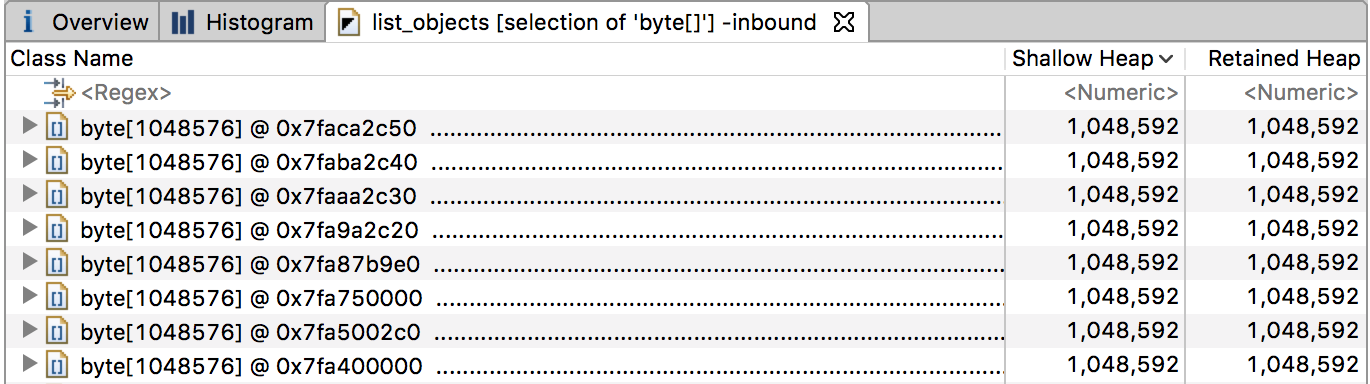

MAT分析

1. 当线程运行main方法时,list是在的`VM Stack`的`Current Stack Frame`定义的`强引用(Strong Reference)`,且为`GC ROOT`,哪怕JVM堆内存不足的时候,触发`Full GC`,也不会将其回收,最后导致`OutOfMemoryError` 2. 由GC日志可以看出,`新生代的Eden区`存有`2`个OOMObject对象,`老年代`存有`6`个OOMObject对象,已经无法再容纳新的OOMObject对象,抛出`OutOfMemoryError`

Interned Strings

Interned Strings(字面量)在JDK6会存储在PermGen,从JDK7开始存储在Java Heap,减少OOM性能问题

JDK6 - PermGen

代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
// JDK ➔ 6
// JVM Args ➔ -Xms60m -Xmx60m -XX:PermSize=50m -XX:MaxPermSize=50m -verbose:gc -XX:+PrintGCDetails -XX:+UseSerialGC
// -XX:PermSize ➔ PermGen的初始大小
// -XX:MaxPermSize ➔ PermGen的最大值
public static void main(String[] args) throws Throwable {

BufferedReader reader = new BufferedReader(new InputStreamReader(System.in));
System.out.println("waiting for input...");
reader.readLine();
int i = 0;
List<String> strings = new ArrayList<String>();
while (true) {
// 当前线程保持强引用,阻止被GC回收
strings.add(String.valueOf(i++).intern());
}
}

运行结果

1
2
3
4
5
6
7
[GC [DefNew: 17587K->784K(18432K), 0.0078576 secs] 17587K->1928K(59392K), 0.0078864 secs] [Times: user=0.01 sys=0.00, real=0.01 secs]
[GC [DefNew: 17168K->1764K(18432K), 0.0065362 secs] 18312K->2909K(59392K), 0.0065645 secs] [Times: user=0.00 sys=0.00, real=0.01 secs]
[GC [DefNew: 18148K->12K(18432K), 0.0087651 secs] 19293K->3794K(59392K), 0.0087963 secs] [Times: user=0.00 sys=0.00, real=0.01 secs]
[Full GC [Tenured: 3781K->3783K(40960K), 0.1019995 secs] 7657K->3783K(59392K), [Perm : 51199K->51199K(51200K)], 0.1033236 secs] [Times: user=0.10 sys=0.00, real=0.10 secs]
[Full GC [Tenured: 3783K->3783K(40960K), 0.1647300 secs] 3783K->3783K(59392K), [Perm : 51199K->51199K(51200K)], 0.1659092 secs] [Times: user=0.16 sys=0.00, real=0.17 secs]
[Full GC [Tenured: 3783K->1152K(40960K), 0.0483188 secs] 4020K->1152K(59392K), [Perm : 51199K->13270K(51200K)], 0.0497827 secs] [Times: user=0.05 sys=0.00, real=0.05 secs]
Exception in thread "main" java.lang.OutOfMemoryError: PermGen space

分析

  1. String.valueOf(i++).intern()会在HeapvalueOf)和PermGenintern)中分配存储空间,并返回引用到strings进行保存(强引用,不会被GC回收)
  2. 从GC日志可以看出,Full GC时,PermGen接近填满([Perm : 51199K->51199K(51200K)]

JDK8 - Heap

代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
// JDK ➔ 8
// JVM Args ➔ -Xms600m -Xmx600m -XX:MetaspaceSize=50m -XX:MaxMetaspaceSize=50m -verbose:gc -XX:+PrintGCDetails -XX:+UseSerialGC
// -XX:MetaspaceSize ➔ Metaspace的初始大小,在JDK8开始,PermGen已经被移除,采用Metaspace来替代
// -XX:MaxMetaspaceSize ➔ Metaspace的最大值
public static void main(String[] args) throws Throwable {

BufferedReader reader = new BufferedReader(new InputStreamReader(System.in));
System.out.println("waiting for input...");
reader.readLine();
int i = 0;
List<String> strings = new ArrayList<String>();
while (true) {
// 当前线程保持强引用,阻止被GC回收
strings.add(String.valueOf(i++).intern());
}
}

运行结果

1
2
3
4
5
6
7
[GC (Allocation Failure) [DefNew: 161762K->20480K(184320K), 0.4081917 secs] 161762K->108735K(593920K), 0.4082377 secs] [Times: user=0.31 sys=0.06, real=0.41 secs]
[GC (Allocation Failure) [DefNew: 180388K->20480K(184320K), 0.5512956 secs] 268644K->242289K(593920K), 0.5513318 secs] [Times: user=0.44 sys=0.08, real=0.55 secs]
[GC (Allocation Failure) [DefNew: 163946K->20480K(184320K), 0.5983332 secs] 385755K->362517K(593920K), 0.5983566 secs] [Times: user=0.46 sys=0.07, real=0.60 secs]
[GC (Allocation Failure) [DefNew: 184320K->184320K(184320K), 0.0000114 secs][Tenured: 342037K->409599K(409600K), 2.0193780 secs] 526357K->497464K(593920K), [Metaspace: 9048K->9048K(1058816K)], 2.0194333 secs] [Times: user=1.89 sys=0.08, real=2.02 secs]
[Full GC (Allocation Failure) [Tenured: 409599K->409599K(409600K), 2.0671005 secs] 546537K->542781K(593920K), [Metaspace: 9065K->9065K(1058816K)], 2.0671389 secs] [Times: user=1.95 sys=0.03, real=2.07 secs]
[Full GC (Allocation Failure) [Tenured: 409599K->409599K(409600K), 2.1368935 secs] 542781K->542354K(593920K), [Metaspace: 9065K->9065K(1058816K)], 2.1370422 secs] [Times: user=2.08 sys=0.02, real=2.14 secs]
Exception in thread "main" java.lang.OutOfMemoryError: Java heap space

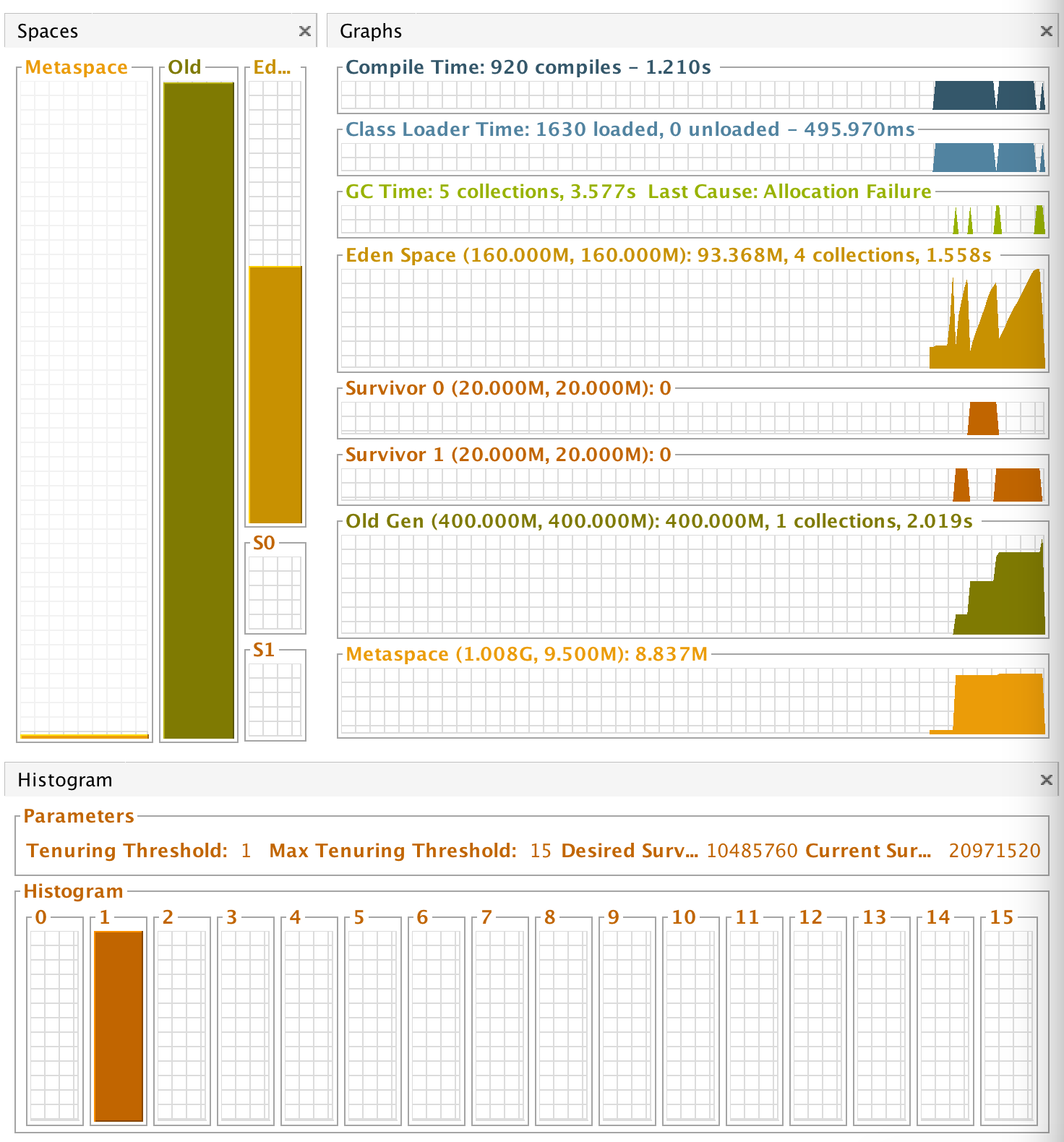

分析

  1. String.valueOf(i++).intern()会在HeapvalueOf)中分配存储空间,并返回引用到strings进行保存(强引用,不会被GC回收)
  2. 从GC日志可以看出,Full GC时,Old Gen接近填满(Tenured: 409599K->409599K(409600K)
